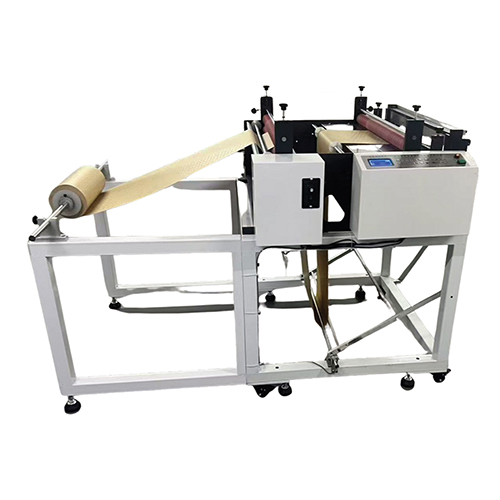

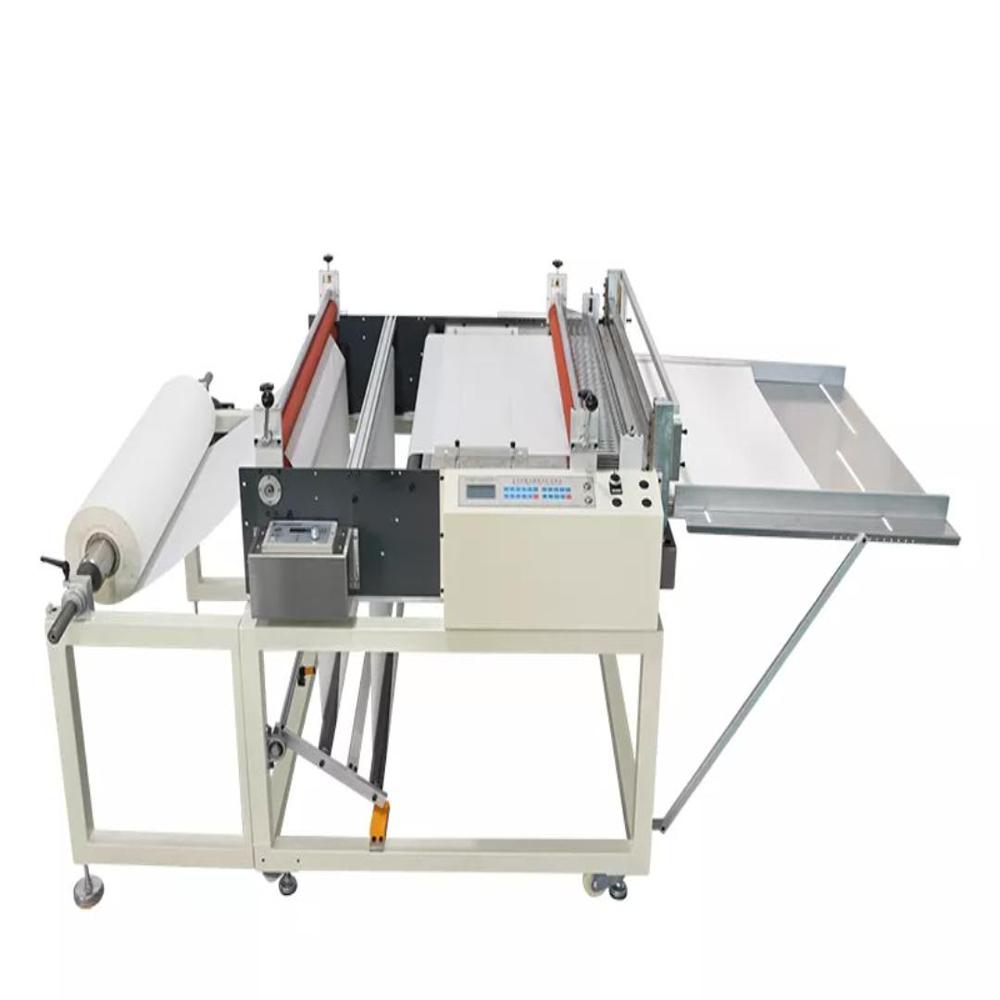

Ultrasonic Welding Machine

Automatic Roll To Sheet Vertical Cutting Machine

Automatic Roll To Sheet Vertical Cutting Machine Specification

Drive Motor
Heavy duty AC drive motor

Product Type
Automatic Sheet Cutting Machine

General Use
Sheet cutting from roll for paper, film, foil, etc.

Material
Other

Type
Other

Capacity
Up to 5000 sheets/hour

Weight (kg)
1200 kg (approx.)

Computerized
Yes

Automatic
Yes

Cutting Speed
20-60 meters/min (adjustable)

Cutting Thickness
Up to 15 mm (material dependent)

Cutting Function
Automatic roll to sheet vertical cutting

Cooling System
Natural air cooling

Drive Type
Electric motor drive

Voltage
220V/380V, 50Hz

Dimension (L*W*H)
3300 1850 1500 mm

Feature
High speed, accuracy, easy operation, low maintenance

Color
Grey/Blue (as per manufacturer standard)

Motor
2 HP AC motor

Mechanical Precision
0.5 mm

Software Detail
PLC based control system

Cutting Method
Rotary blade vertical cutting

Control System
Programmable Logic Controller (PLC) with HMI

Cutting Material
Paper, Film, Foil, Laminates

Cutting Area
Up to 1300 mm width (customizable)

Operator Required
Single operator

Lubrication System
Manual / centralized (optional)

Max Roll Diameter
up to 1000 mm

Blade Size
Circular blade, 350 mm diameter

Web Guide System
Optional (for improved alignment)

Safety Features
Emergency stop switch, safety guards

Noise Level
Below 75 dB

Compressed Air Required
No

Feeding Type
Automatic roll feeding with tension control

Blade Material
High speed steel (HSS)

Power Consumption
Approx. 3 kW

Automatic Roll To Sheet Vertical Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Automatic Roll To Sheet Vertical Cutting Machine

Discover the resplendent Automatic Roll To Sheet Vertical Cutting Machine, now available at a reduced price! Perfect for manufacturers, suppliers, and traders across India, this uncommon machine features a high-speed circular blade-350 mm in diameter-crafted from high speed steel for unmatched precision and durability. Shop now and take advantage of exceptional features like automatic roll feeding with tension control, a robust PLC-based control system, and effortless single-operator usage. The offer ensures easy operation, superior safety, and efficiency for cutting paper, film, foil, or laminates to excellence.

Application Method, Media & Usage Type

The Automatic Roll To Sheet Vertical Cutting Machine is engineered for seamless application with paper, film, foil, and laminates. It employs a high-speed rotary blade vertical cutting mechanism for swift, precise conversion from rolls to sheets. Suited for continuous and industrial usage, the machine supports various materials and customizable widths up to 1300 mm. The user-friendly control via PLC and HMI ensures a smooth experience for operators, delivering uncommon reliability on the shop floor.

Sample Availability, Payment, and Delivery Details

Samples of the Automatic Roll To Sheet Vertical Cutting Machine are available upon request, ensuring complete satisfaction before purchase. Flexible payment terms are offered to facilitate a convenient buying process. Each unit is safely packaged to prevent any damage during goods transport. Upon order confirmation, dispatching is prompt to expedite delivery, ensuring your equipment reaches you swiftly and securely. Trust in our efficient logistic systems for streamlined receipt of your machine.

FAQ's of Automatic Roll To Sheet Vertical Cutting Machine:

Q: How does the Automatic Roll To Sheet Vertical Cutting Machine operate?

A: This machine functions through an automatic feeding mechanism controlled by a PLC system, enabling seamless vertical rotary blade cutting from roll to sheet. Operation is optimized for a single operator, with high speed and precision.

Q: What materials can be processed with this cutting machine?

A: The machine is designed for cutting paper, film, foil, and laminates, making it versatile for various industries requiring roll-to-sheet conversion.

Q: When is the ideal time to use the web guide system?

A: The optional web guide system should be used when enhanced alignment and precision are needed, particularly for materials prone to shifting or misalignment during feeding.

Q: Where can the Automatic Roll To Sheet Vertical Cutting Machine be installed?

A: It can be installed in manufacturing plants, packaging facilities, or trading centers where bulk roll-to-sheet conversion of compatible materials is required.

Q: What benefits does this machine offer over manual cutting methods?

A: It delivers high speed (up to 5000 sheets/hour), accuracy (0.5 mm mechanical precision), reduced labor requirements, low maintenance, and ensures operator safety with emergency stops and guards.

Q: How is the delivery and transport process managed for this equipment?

A: Packaging is secure, and upon order completion, dispatching is arranged quickly. Reliable goods transport ensures your machine arrives safely and on time.
